CZU steel Purlin Bracket Roll Forming Machine

Basic Info

Model No.: SUF

Types of: Steel Frame &Amp; Purlin Machine

Applicable industry: Hotels, Construction Works

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets): United Kingdom, United States, Italy

Showroom location (in which countries are there sample rooms overseas): Philippines, United Kingdom, United States, Egypt

Video factory inspection: Provided

Mechanical test report: Provided

Core component warranty period: 5 Years

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Old and new: New

place of origin: China

warranty period: More Than 5 Years

Marketing type: Hot Product 2019

Core selling point: High Safety Level

Control System: PLC

Voltage: Customized

Certification: ISO9001

Warranty: 1 Year

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Automatic

Thickness: 1.2 - 3.0mm

Shaft Diameter And Material: 90mm, 45#

Forming Rollers: 21 Rollers

Main Motor: 22kw

Forming Speed: 18-20m/min

Additional Info

Packaging: Naked

Productivity: 500 sets

Brand: SUF

Transportation: Ocean,Air,Express,by train,Land

Place of Origin: Fujian

Supply Ability: 500 sets

Certificate: ISO, CE

HS Code: 84552210

Port: Xiamen,tianjin,shanghai

Product Description

CZU Purlin Bracket Roll Forming Machine

   Here are the CZU Purlin Bracket Roll Forming Machine, 21 rollers tation, 90mm diameter shaft, Cr12 roller material, hydraulic cutting.

C/Z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available. The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine.

Detailed images of CZ shaped steel forming machine

Machine parts

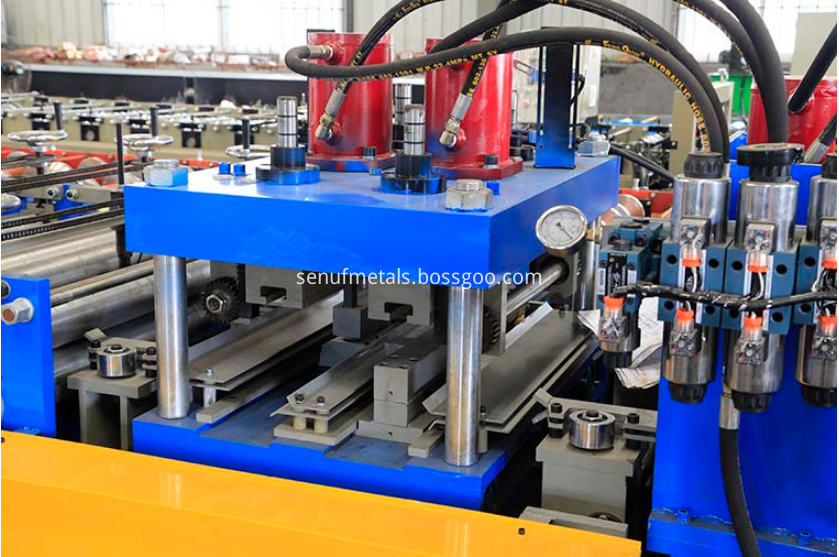

(1) CZ purlin machine punching system

Brand: SUF  Original: China

with 3 cylinder (one cyinder for single hole and 2 cylinders for dual holes)

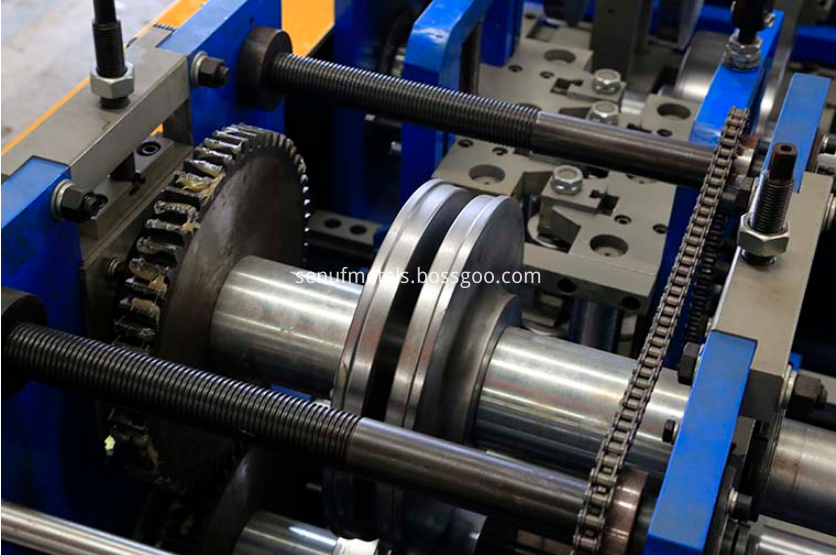

(2) CZ purlin machine rollers

Rollers manufacured from high quality bearing steel Gcr15, CNC lathes, Heat Treatments,

With black treatment or and-Chrome Coating for options:

With feeding material guide, body frame made from 450# H type steel by welding

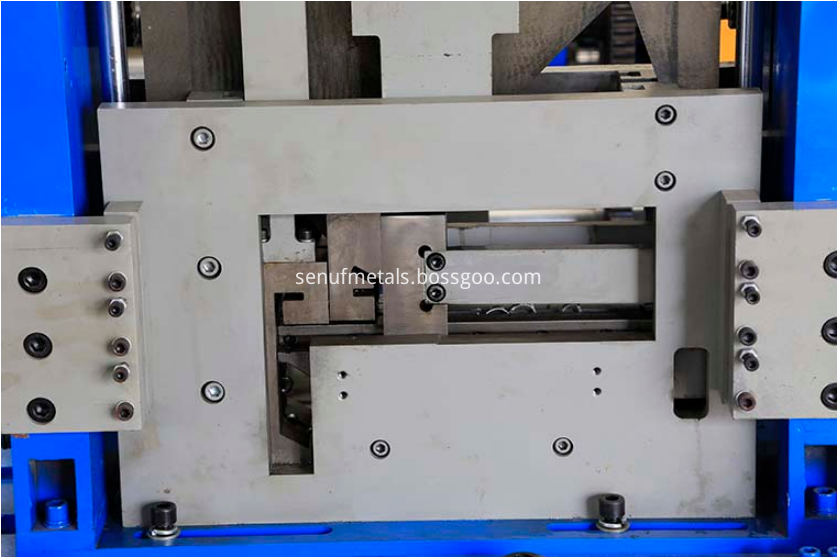

(3) CZ purlin machine post cutter

Patened universal post-cutter, no need to change cutter for different size,

Made by high quality mold steel Cr12Mov with heat treatment,

Cutter frame from high quality 30mm steel plate by welding,

Pre-punching & Pre-cutting, stop to punch, stop to cut,

Hdraulic motor: 7.5kw, hydraulic pressure range: 0-16Mpa,

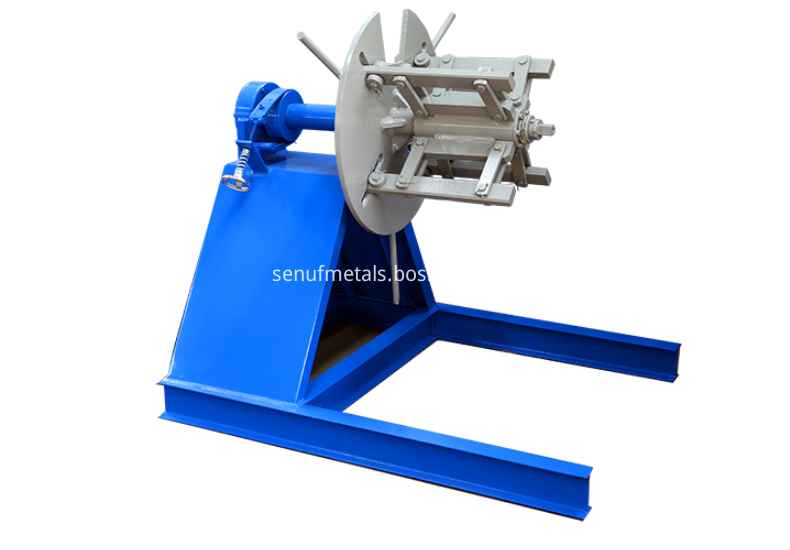

(4) CZ purlin machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 500mm, coil ID range 470mm±30mm,

Capacity: Max 4 tons

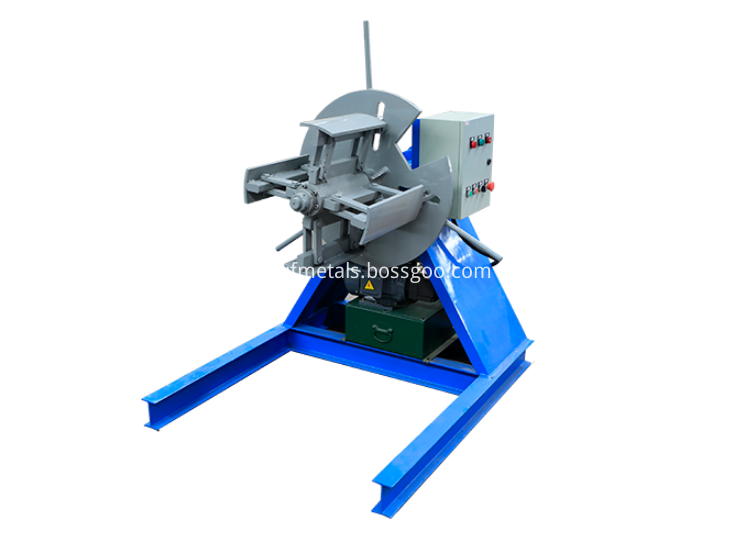

With 5 tons hydraulic decoiler for optional:

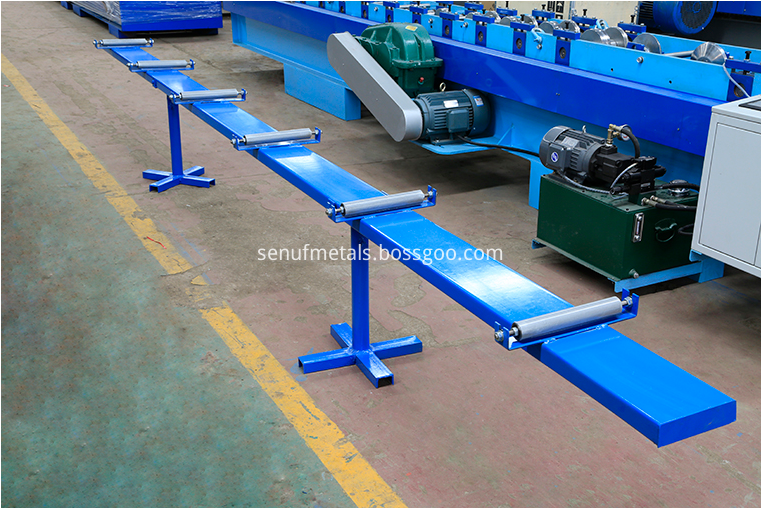

(5) CZ purlin machine exit rack

Un-powered, two sets
