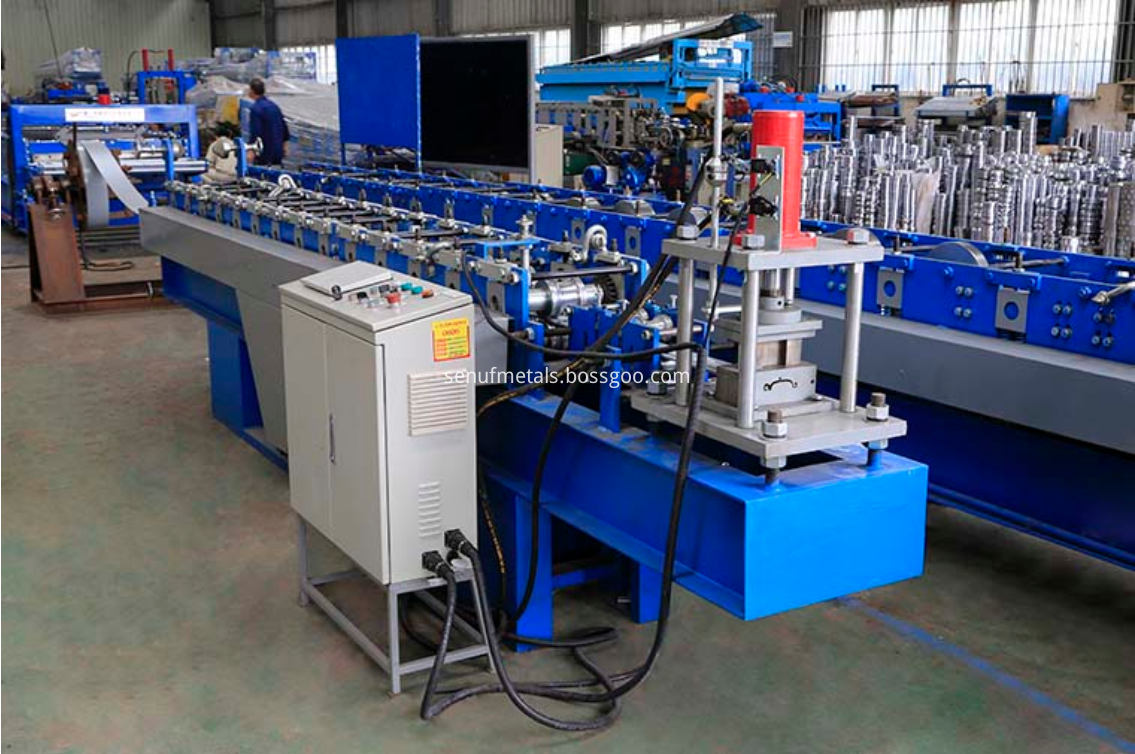

Steel Metal Roller Shutter Sheet Roll Forming Machine

Basic Info

Model No.: SUF

Certification: CE, ISO9001

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Automatic

Drive: Hydraulic

Thickness: 0.4-1.0mm / 1.2-2.0mm

Rollers: 14

Motor Power: 4KW

Control System: PLC

Forming Speed: 12-15m/min

Rollers Material: 45# Steel With Chromed

Shaft Material: 45#

Cutter Material: Cr12 With Heat Treatment

Additional Info

Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: TIANJIN,XIAMEN

Product Description

Steel Metal Roller Shutter Sheet Roll Forming Machine

  Our Steel Metal Roller Shutter Sheet Roll Forming Machine can produce various of steel roof and wall panel, gutter system, shutter door etc. It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Main features of Steel Roller Shutter Roll Forming Machine

The advantages of Metal Roller Shutter Roll Forming Machine are as follows:

1. Three types of material thickness for options: 0.4-0.6mm for single phase power supply machine, 0.7-1.2mm even 1.5mm for 3 phase power supply machine,

2. Save space, more convenient,

3. Easy operation, low maintenance cost,

4. Stable and durable.

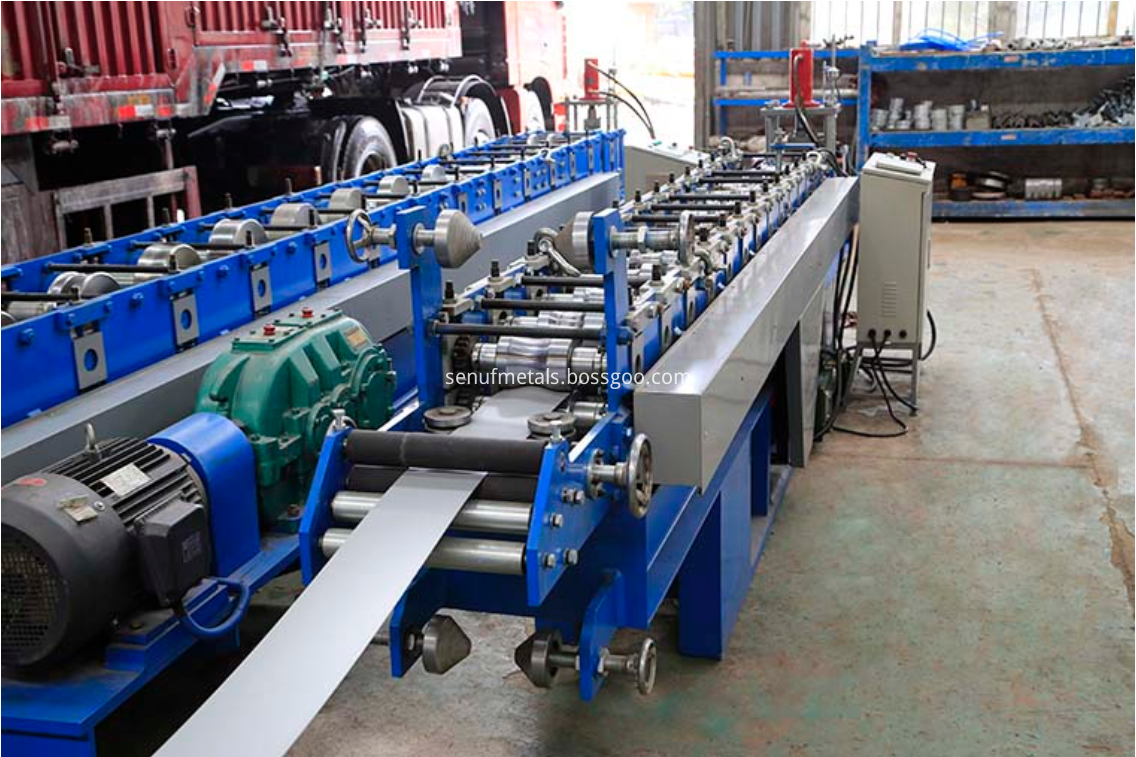

Detailed Images of Metal Roller Shutter Roll Forming Machine

Machine parts

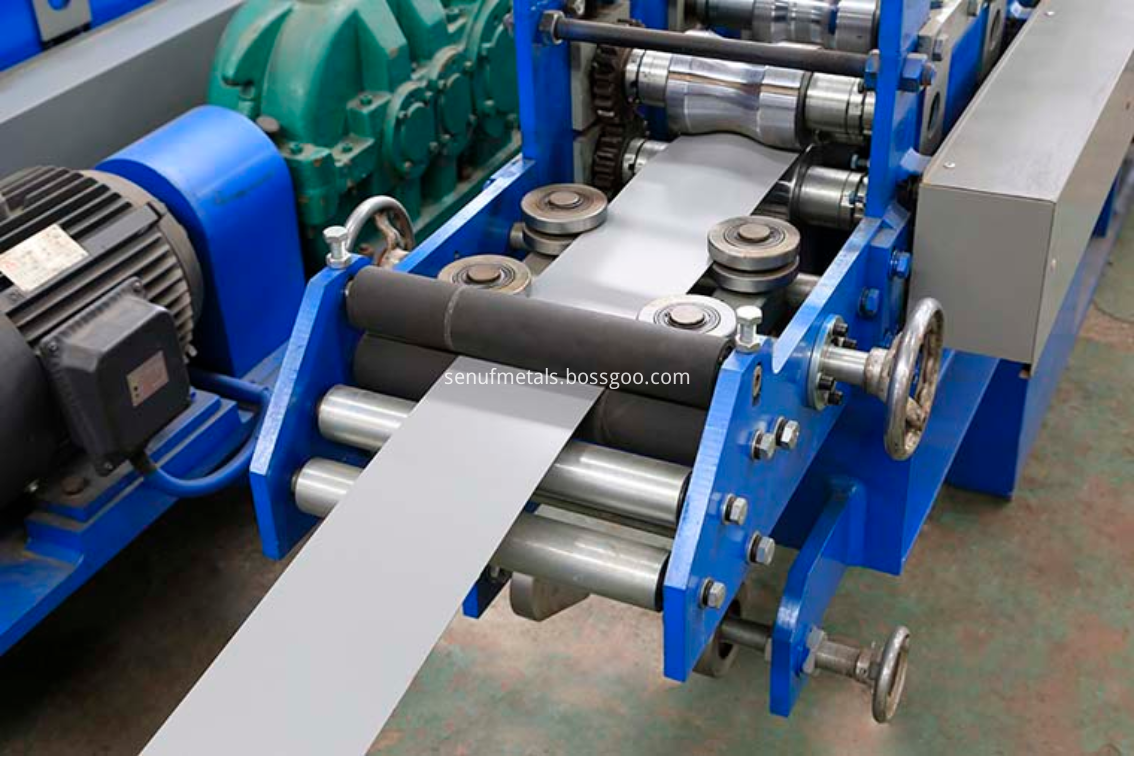

1. SUF18-81 Steel Roller Shutter Sheet Forming Machine Guiding

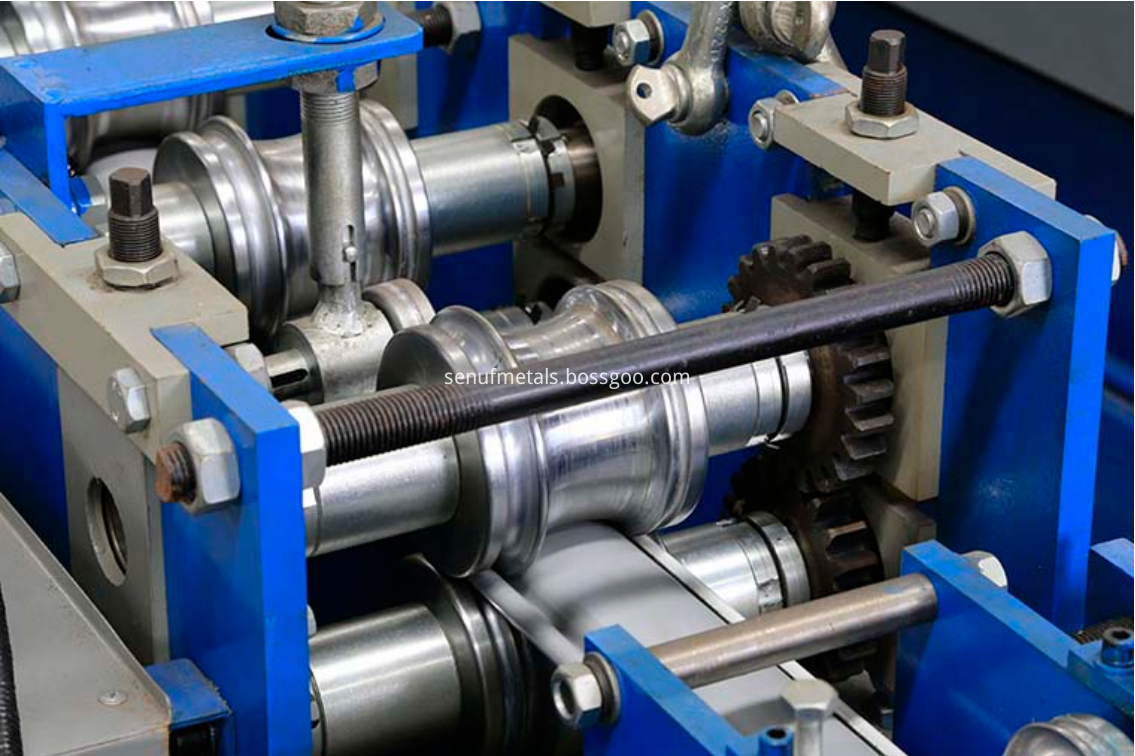

2. Steel Metal Roller Shutter Sheet Roll Forming Machine Rollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat treatment, with black treatment or Hard-Chrome coating for options,

Body frame made by 300# H type steel by welding.

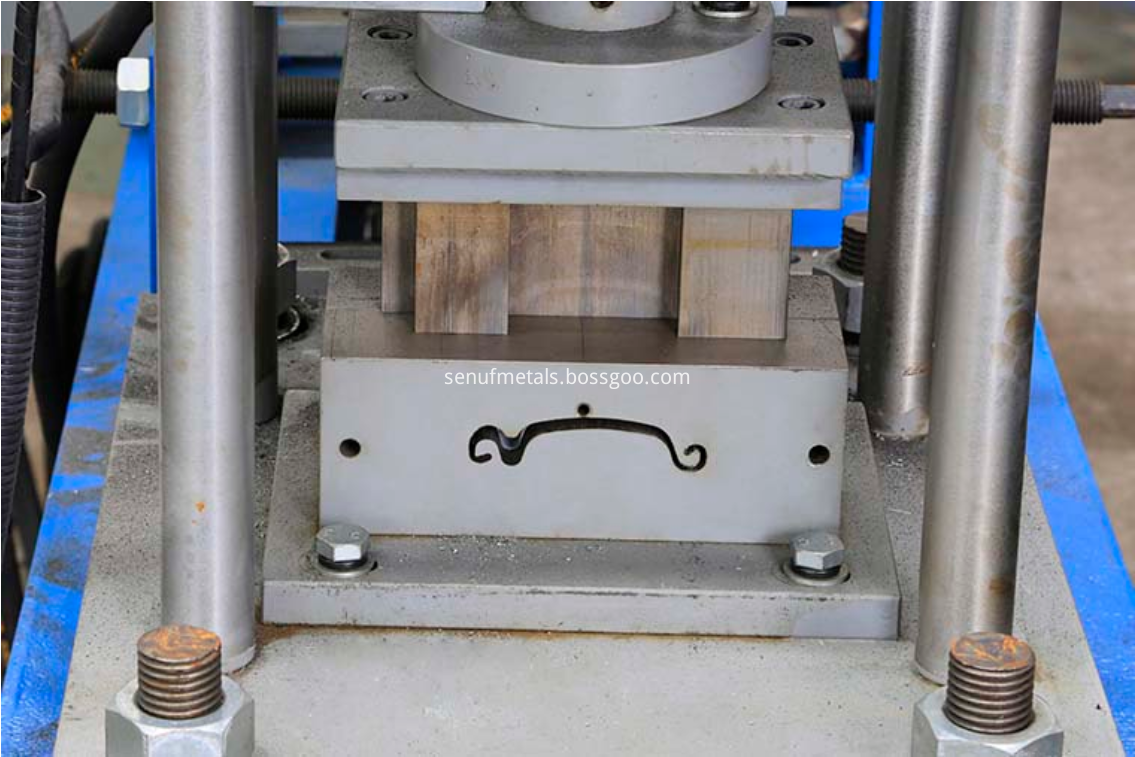

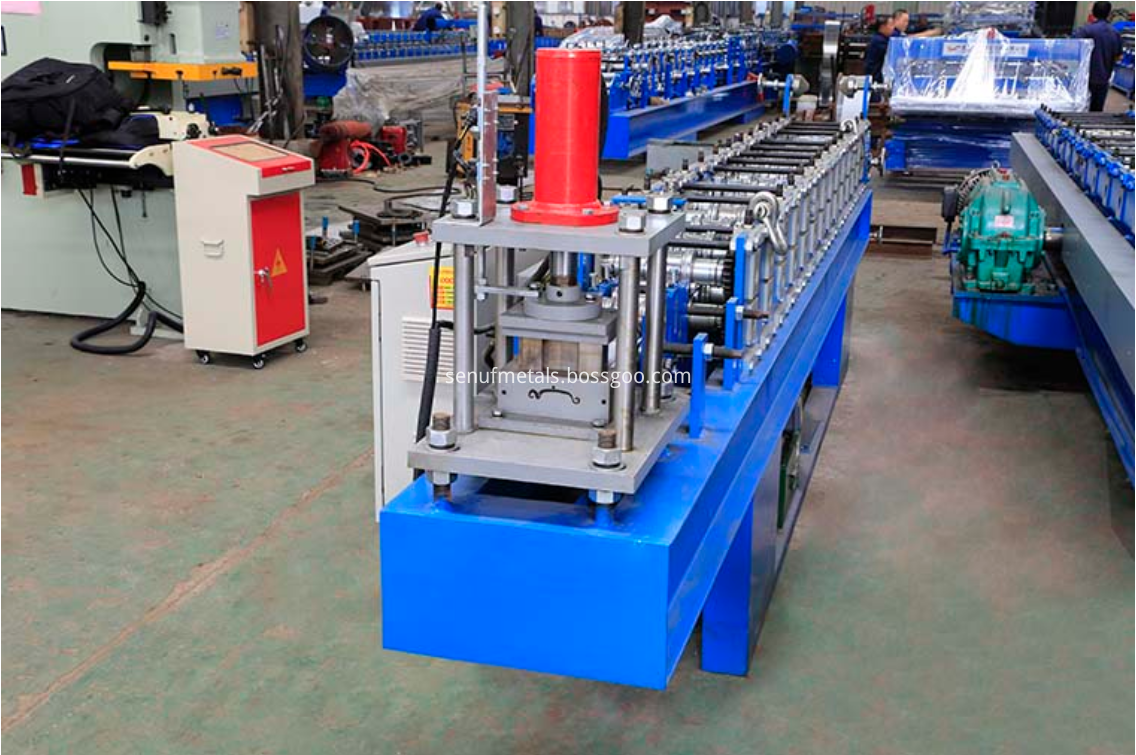

3. Steel Metal Roller Shutter Sheet Roll Forming Machine Cutter

Made by high quality mold steel Cr12 with heat treatment, cutter frame made by high quality 20mm steel plate by welding

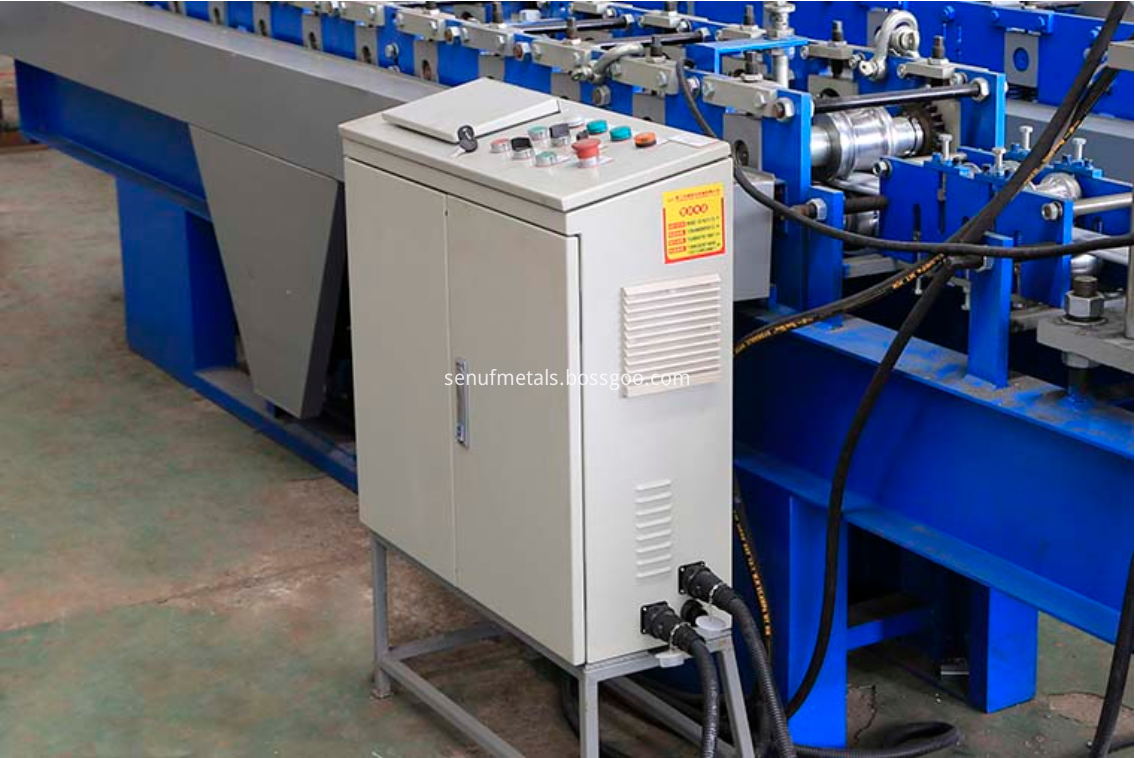

4. Steel Roller Shutter Sheet Forming Machine PLC control system

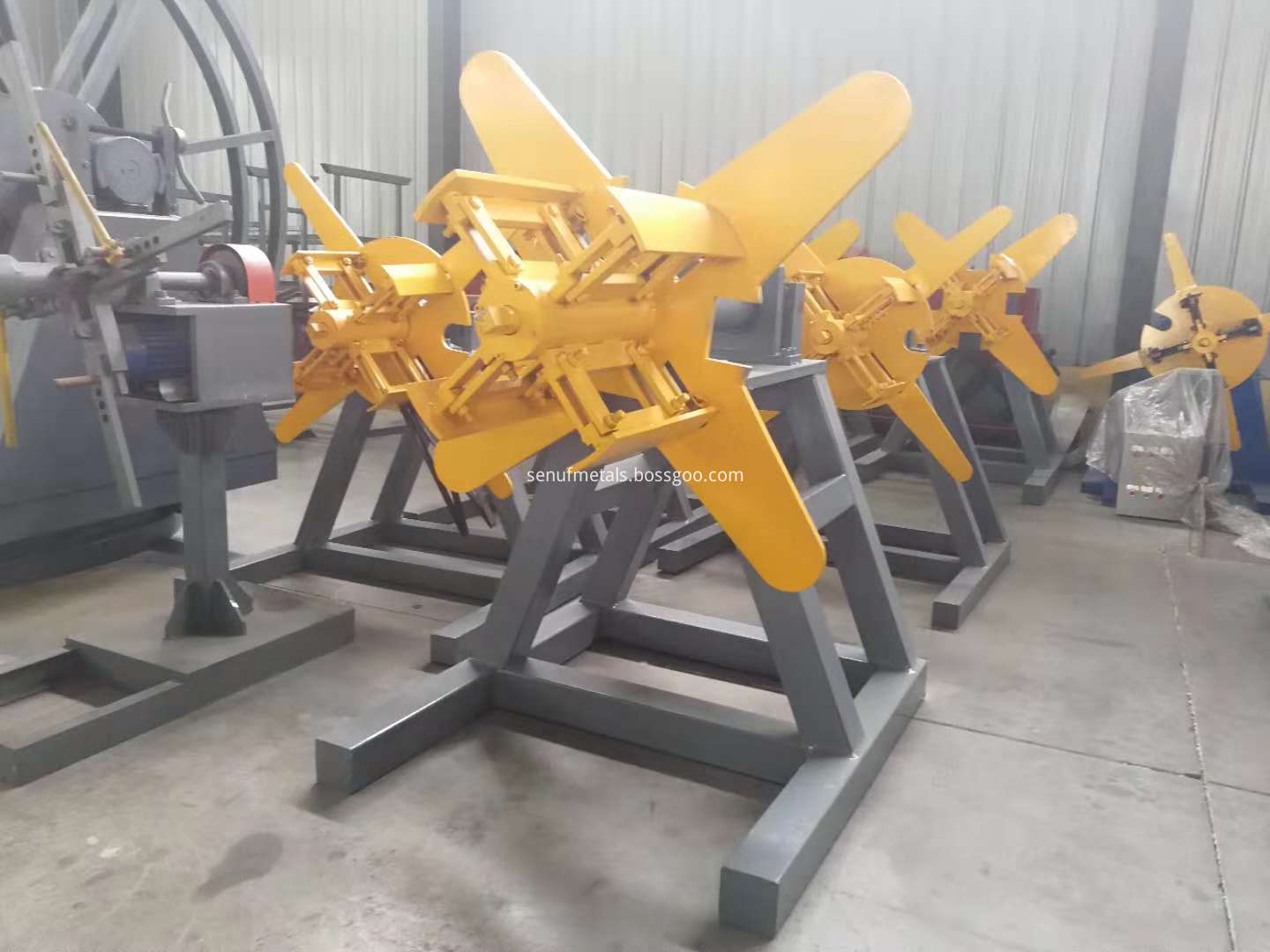

5. Metal Roller Shutter Roll Forming Machine Decoiler

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop,

Max feeding width: 300mm, coil ID range 470mm±30mm,

Capacity: 3 tons

6. Steel Metal Roller Shutter Sheet Roll Forming Machine Run-out table

Un-powered, one unit

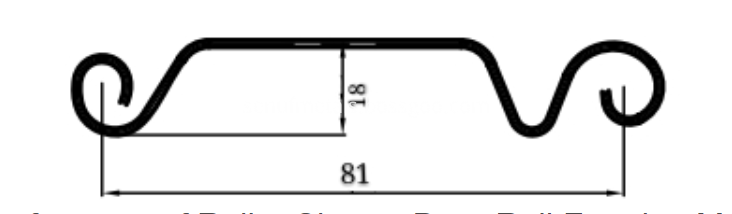

Other details of SUF18-81 Steel Metal Roller Shutter Sheet Roll Forming Machine

Shafts manufactured by 45#, Main shaft diameter ⌀45/57mm, precision machined,

Motor driving, gear chain transmission, 14/19 steps to form,

Main motor: 4kw/5.5kw,

Frequency speed control, forming speed 12-15m/min.

PLC control system (Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron)
