Direct factory machines making steel door roller machine

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info


Model No.: SUF

Thickness: 0.4-1.0mm / 1.2-2.0mm

Rollers: 14

Motor Power: 4KW

Control System: PLC

Forming Speed: 12-15m/min

Rollers Material: 45# Steel With Chromed

Shaft Material: 45#

Cutter Material: Cr12 With Heat Treatment


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: TIANJIN,XIAMEN


Product Description

Direct factory machines making steel door roller machine

   Steel Shutter Door Roller Machine consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system and control system. The roller shutter slat which made by this machine has neat external appearance, even ripples, high utilization and strong strength.

roller shutter door forming machine

roller shutter door forming machine 1

drawing


Main features of Shutter door roller machine

The advantages of Door making machine are as follows:

1. Three types of material thickness for optional: 0.4-0.6mm for single phase power supply machine, 0.7-1.2mm even 1.5mm for 3 phase power supply machine,

2. Save space, more convenient,

3. Easy operation, low maintenance cost,

4. Stable and durable.


Detailed Images of Roller shutter door Forming Machine

Machine parts

1. Roller slat shutter door Forming Machine door making machine Guiding

Guiding


2. Roller slat shutter door Forming Machine Rollers

Rollers manufactured by high quality 45# steel, CNC lathes, Heat treatment, with black treatment or Hard-Chrome coating for options,

Body frame made by 300# H type steel by welding.

 Roller shutter door forming machine rollers


3. Roller Shutter Door Roll Forming Machine Cutter

Made by high quality mold steel Cr12 with heat treatment, cutter frame made by high quality 20mm steel plate by welding

Roller shutter door forming machine cutter

Roller shutter door forming machine cutter 1


4. Roller shutter door Forming Machine PLC control system

Roller shutter door forming machine PLC control system

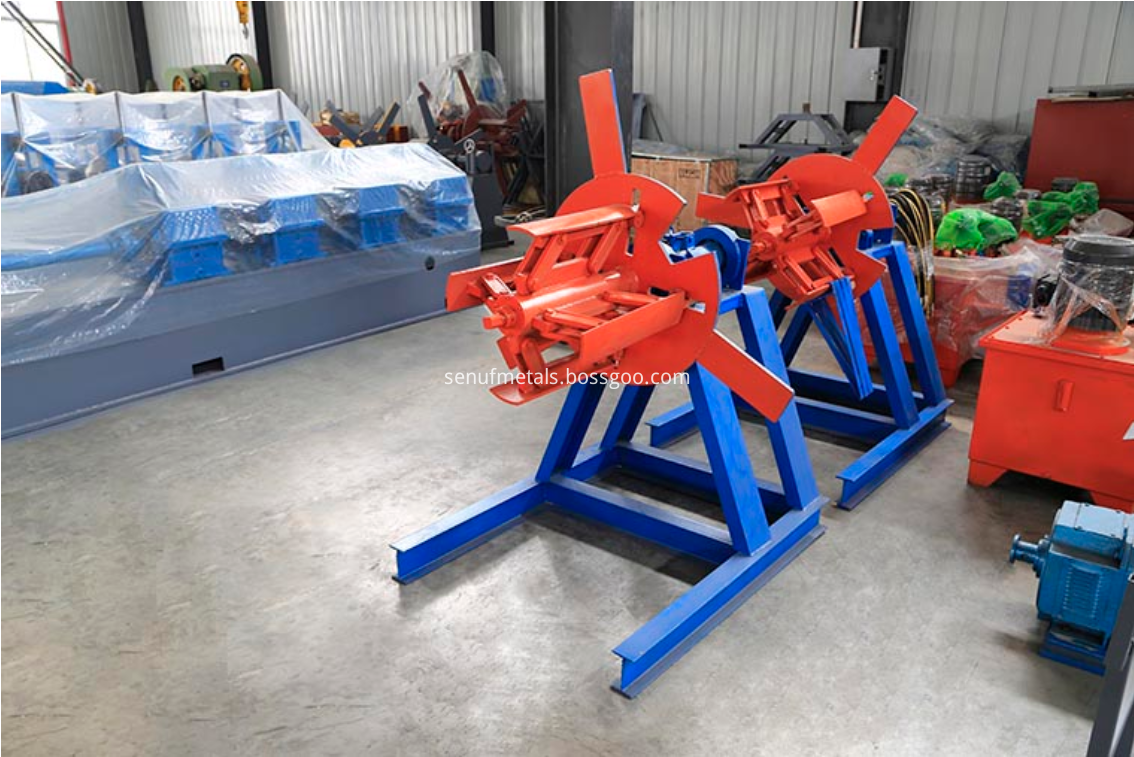

5. Roller slat shutter door Forming Machine Decoiler

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop,

Max feeding width: 300mm, coil ID range 470mm±30mm,

Capacity: Max 1.5 tons

1.5 tons manual decoiler


6. Roller Shutter Door Automatic Cold Roll Forming Machine Run-out table

Un-powered, one unit


Other details of Roller slat shutter door Forming Machine door making machine

Shafts manufactured by 45#, Main shaft diameter ⌀45/57mm, precision machined,

Motor driving, gear chain transmission, 14/19 steps to form,

Main motor: 4kw/5.5kw, Hydraulic decoiler: 2.2kw/3.75kw

Frequency speed control, forming speed 12-15m/min.


PLC control system (Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron)
