Product Description
SUF50-333-1000 High quality strong strength floor decking forming machine
The metal deck produced by Strong Strength Floor Decking Forming Machine has high strength with big wave length. Quick Change CZ Purlin Roll Forming Machine adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, Double Layer Roll Making Forming Machine economized steel and cuts down investment accordingly.

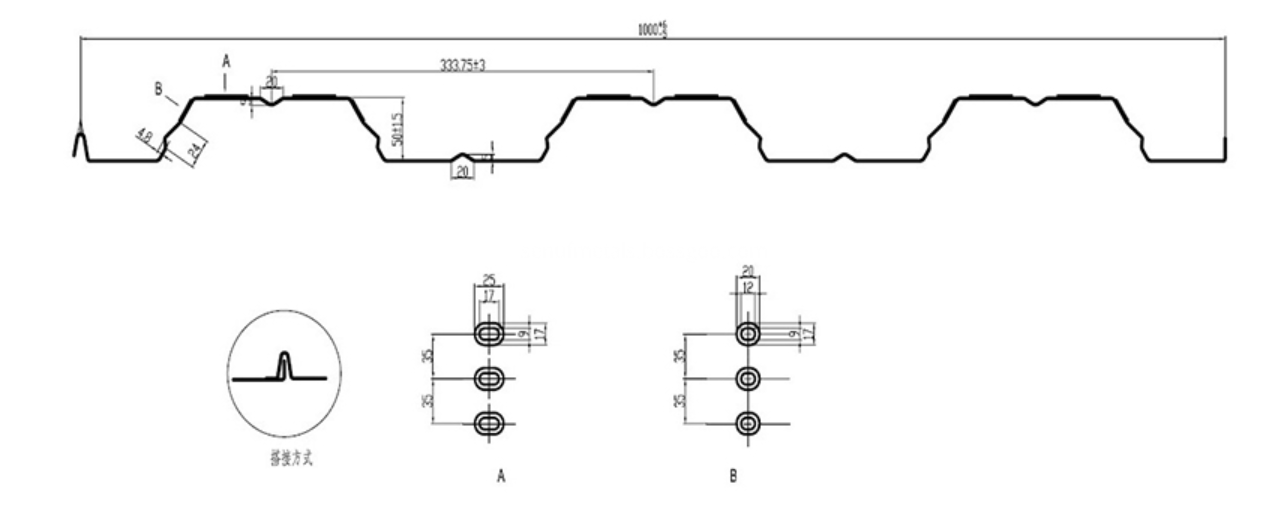

Profile:
Material:
Material Thickness: 0.8-1.5mm or 1.5-2.0mm
Applicable material: GI, cold roll steel with yield strength 235-550Mpa
Working Process:
Machine Components:
1. Manual Decoiler: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 1250mm, coil ID range 508±30mm
Capacity: Max. 7 ton
2. Feeding Guide Device:
Feeding guide device can control the material feeding width
3. Main Machine:
Body frame made from H400 type steel by welding, side wall thickness: Q235 t18mm
Rollers manufactured from 45# steel, CNC leathers, heat treatment, hard chrome coated, with thickness 0.04mm, surface with mirror treatment (for longer life anti-rust)
The material for embossing roller: bearing steel Gcr15 for long working life, heat treatment
Shaft diameter: Φ90/95mm, precision machined
Gear/Sprocket driving, about 24 steps to form,
Main motor: 11*2kw, frequency speed control
Real forming speed: 0-20m/min(not include cutting time)
4. Post hydraulic cutting device:
Post to cut, stop to cutting, two pieces type of cutting blade design, no blanking
Hydraulic moto: 5.5kw, Cutting pressure: 0-12Mpa,
Cutting tool material: Cr12Mov(=SKD11 with at least one million times of cutting life), heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station
5. PLC control system:
Control the quantity and cutting length automatically
Input the production data (Production batch, pcs, length, etc) on the touch screen, it can finish the production automatically combined with: PLC, Inverter, Touch Screen, Encoder, etc
6. Exit Rack:
Un-powered, three units, with rollers on it for easy movement
7. Product Show:
Packing Type:
Main maching body is naked and covered by plastic film (to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long distance transportation.
