Product Description
Roller slat shutter door Forming Machine door making machine
The forming rollers is the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers, avoid the deformation during heat treatment and ensure the rollers’ preciseness and wear-resisting ability
Main features of Roller slat shutter door Forming Machine
The advantages of Door making machine are as follows:
1. Accuracy profile,
2. Save space, more convenient,
3. Easy operation, low maintenance cost,
4. Stable and durable.

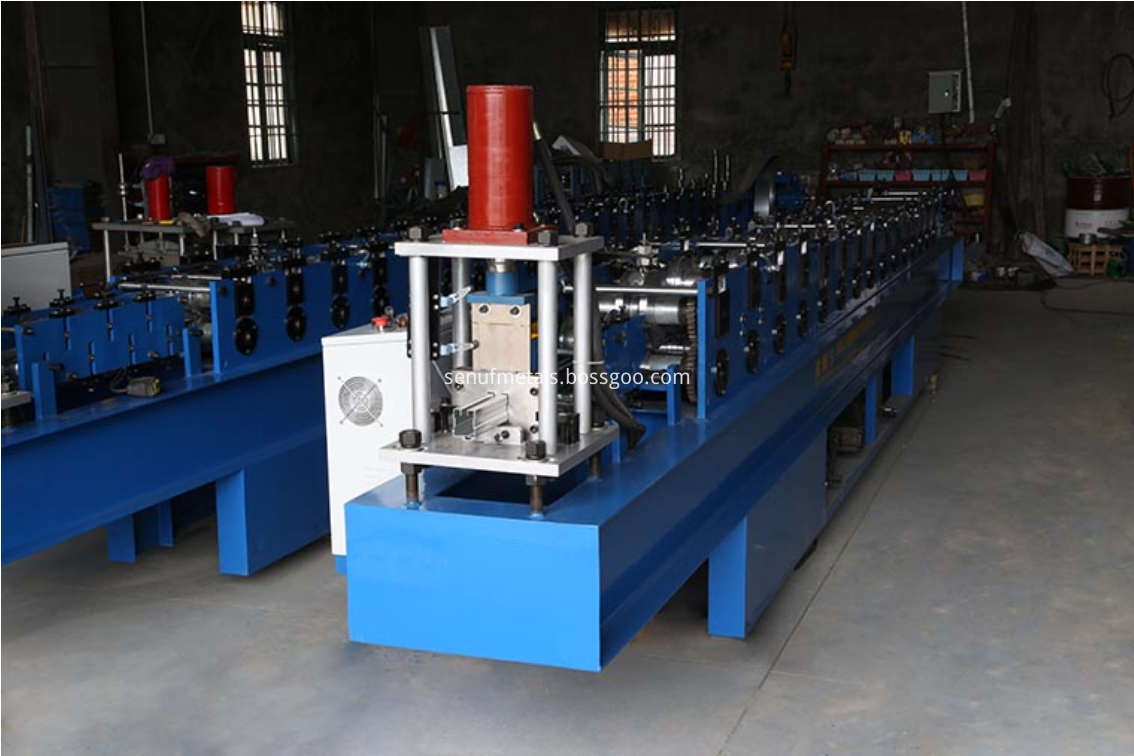

Detailed Images of Roller shutter door Forming Machine
Machine parts

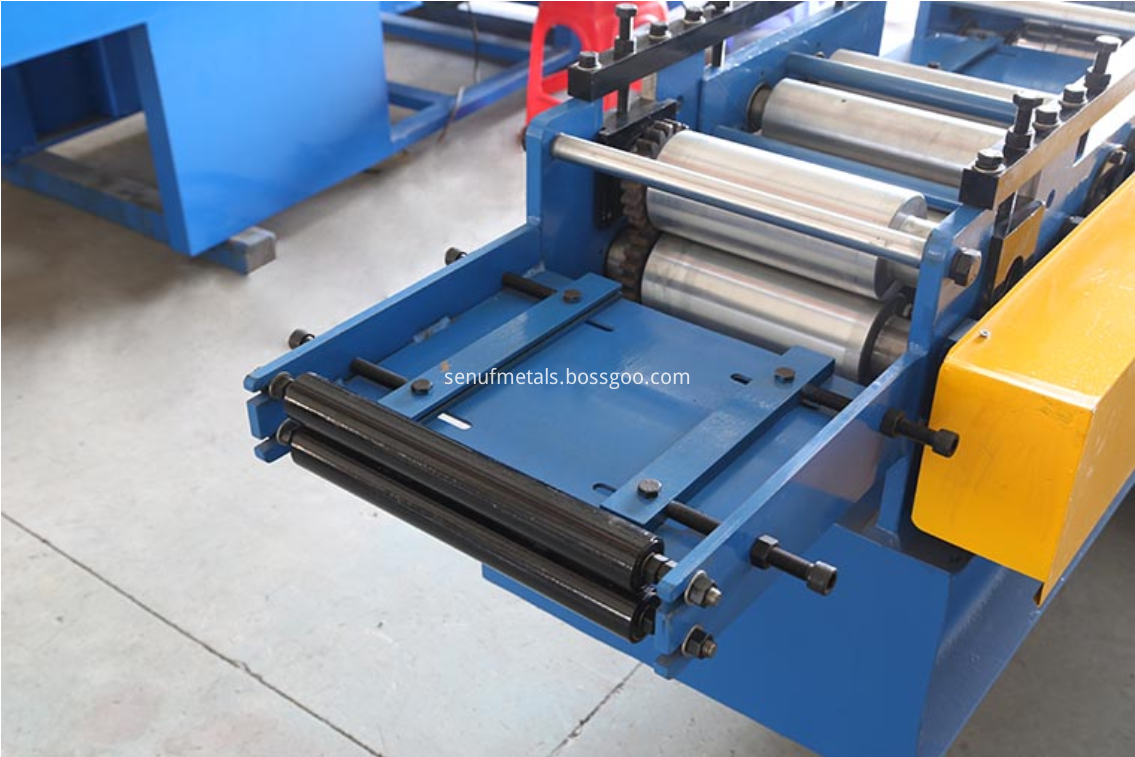

1. Roller slat shutter door Forming Machine door making machine Guiding

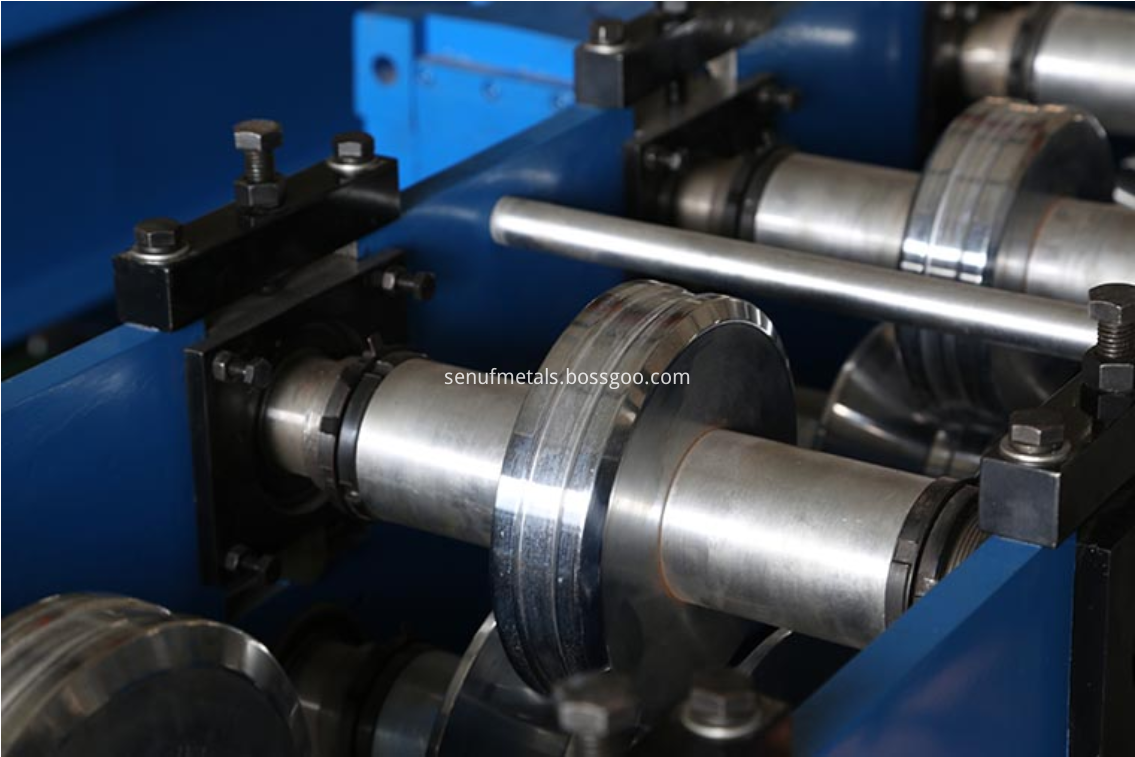

2. Roller slat shutter door Forming Machine Rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat treatment, with black treatment or Hard-Chrome coating for options,
Body frame made by 300# H type steel by welding.

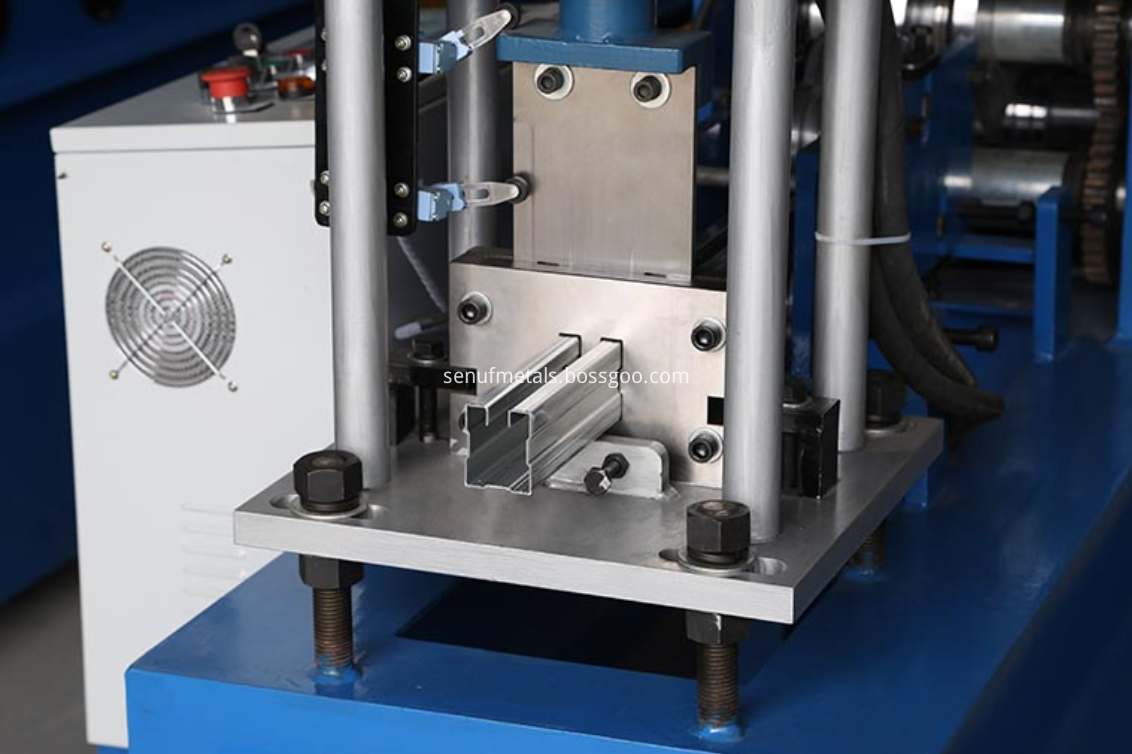

3. Roller Shutter Door Roll Forming Machine Cutter
Made by high quality mold steel Cr12 with heat treatment, cutter frame made by high quality 20mm steel plate by welding
4. Roller shutter door Forming Machine PLC control system

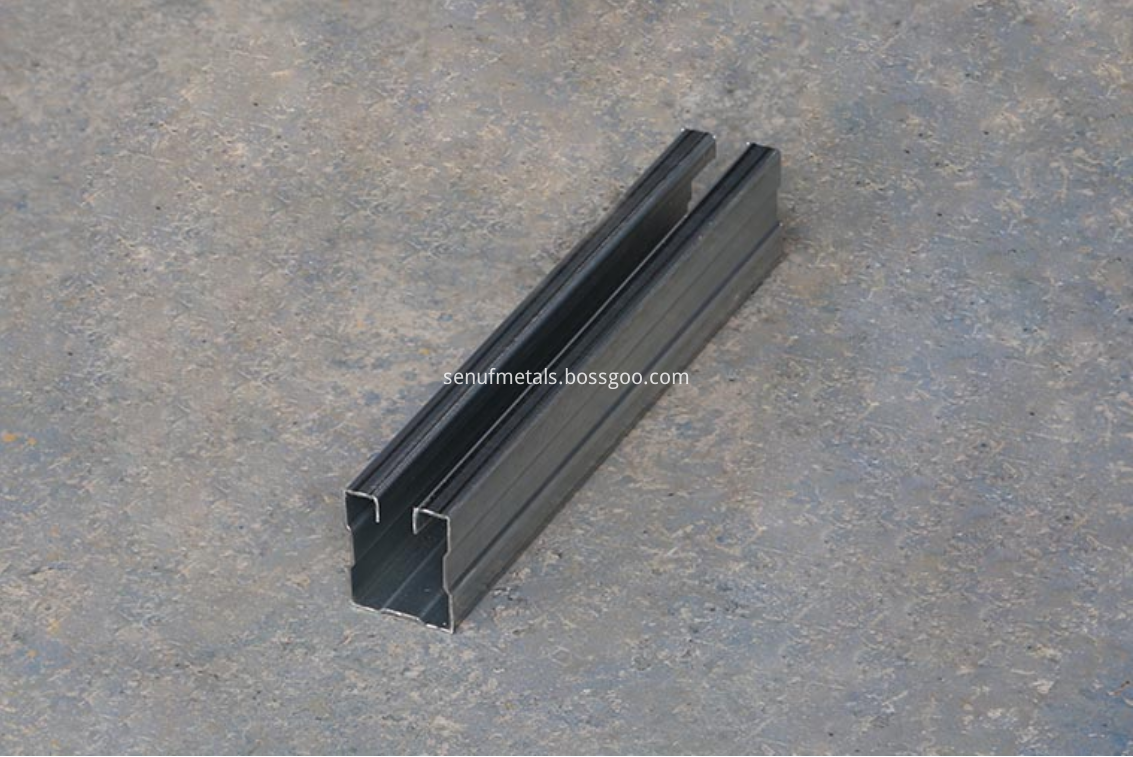

5. Roller Shutter Slat Roll Forming Machinery Sample display
6. Roller slat shutter door Forming Machine Decoiler
Manual Decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop,
Max feeding width: 300mm, coil ID range 470mm±30mm,
Capacity: 3 tons
7. Roller Shutter Door Automatic Cold Roll Forming Machine Run-out table
Un-powered, one unit
Other details of Roller slat shutter door Forming Machine door making machine
Shafts manufactured by 45#, Main shaft diameter ⌀45/57mm, precision machined,
Motor driving, gear chain transmission, 14/19 steps to form,
Main motor: 4kw/5.5kw,
Frequency speed control, forming speed 12-15m/min.
PLC control system (Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron)
